I walked into the shop last Tuesday to find a three-axis mill that had been running fine all morning suddenly spitting out parts with a visible mismatch in the bore location. The operator had already swapped inserts and re-zeroed the probe, but the drift persisted. That's when I knew we were dealing with a setup drift issue that needed a structured handoff inspection before we could sign off on the next batch. In Ohio shops, where we run everything from prototype to production, a missed handoff can cost a whole shift.

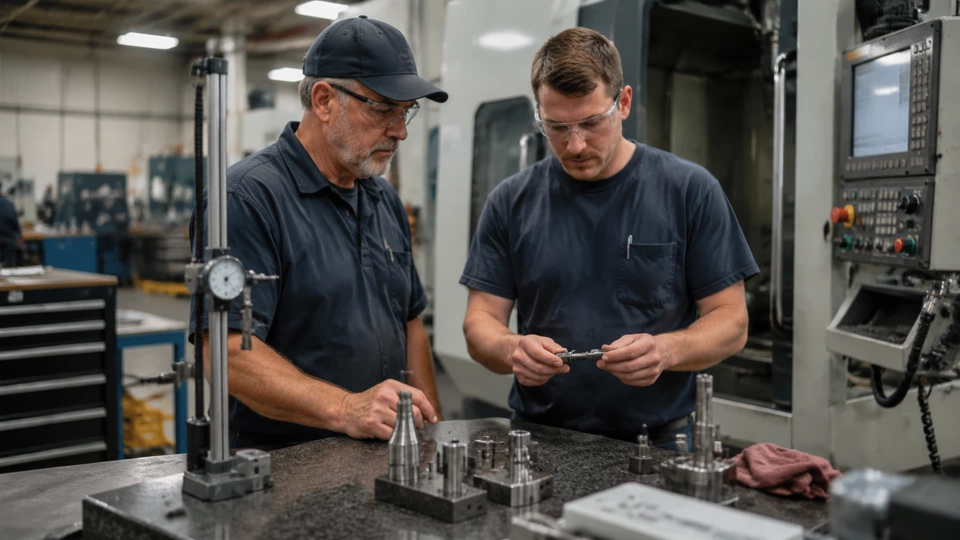

Observed Signals on the Floor
What the operator noticed first
The first clue came from the finish pass on a 4140 steel bracket. The operator pointed out a faint spiral pattern on the bore wall that hadn't been there on the previous setup. He had already checked the coolant concentration and verified the insert grade, but the pattern kept showing up every third part. I asked him to save the last good part from the prior run and the first bad one from the current run so we could compare them side by side under a magnifying glass.
We also noticed that the machine's spindle load meter was fluctuating more than usual during the finishing pass. Normally it sits around 22% with a steady needle, but now it was bouncing between 18% and 26%. That kind of variation often points to a mechanical issue rather than a tool wear problem. I made a note to check the drawbar force and the tool holder taper condition before we went any further.
Another signal came from the part's surface roughness. The operator had a portable profilometer and measured Ra values that were 15% higher than the specification. That alone wouldn't stop production, but combined with the spiral pattern and load fluctuation, it told me we had a systemic drift that needed a proper handoff inspection before we could release the machine for the next job.
Measured Checks and Evidence Collection
Quantifying the drift with shop-floor tools
I started by running a test bar through the spindle at 3000 rpm and measuring the runout with a dial indicator. The reading was 0.0006 inch, which is within the machine's spec but higher than the 0.0003 inch we had recorded after the last spindle alignment. That 0.0003 inch increase was enough to explain the spiral pattern. I recorded the measurement in our log and flagged it for the maintenance team.
Next, I checked the bearing preload by measuring the temperature rise after a 20-minute warm-up cycle. The front bearing housing reached 105°F, which is about 10°F warmer than our baseline. That suggested the preload had shifted slightly, possibly due to thermal growth from a recent heavy cut. I documented the temperature and the ambient shop temperature, which was 72°F, to account for seasonal variation.
I also performed a ballbar test to check the machine's circularity. The results showed a 0.0012 inch deviation in the XY plane, with a noticeable lobing pattern that indicated a possible issue with the axis servo tuning or a mechanical bind. I saved the ballbar plot and noted the feed rate and direction used during the test. All this evidence went into the handoff report so the next operator would know exactly what we found.
Handoff Decision and Next Actions
When to sign off and when to stop
Based on the evidence, I decided not to hand off the machine for production until we addressed the runout and preload issues. The operator agreed, and we scheduled a two-hour window for a maintenance technician to come in and perform a alignment check check and adjust the preload setup. In the meantime, we ran a few test parts on a different machine to keep the job moving.
The handoff decision came down to three factors: the magnitude of the drift, the criticality of the part features, and the availability of backup equipment. For a non-critical part with generous tolerances, we might have accepted the drift and monitored it. But this bracket had a tight bore tolerance of ±0.0005 inch, and the spiral pattern was already pushing the limits. I documented our reasoning in the handoff log, including the signal labels we used: "finish pattern change," "load fluctuation," and "runout increase."
After the maintenance tech finished the alignment and preload adjustments, we re-ran the test bar and got a runout reading of 0.0003 inch. The temperature rise dropped to 95°F, and the ballbar deviation improved to 0.0006 inch. We then cut a test part and measured the bore location within 0.0002 inch of nominal. At that point, I signed the handoff sheet and released the machine for the next setup.
Evidence Ladder: From Signal to Decision
Structured table for the handoff report
| Signal | Evidence to record | Next action |
|---|---|---|
| Spiral finish pattern on bore | Save first bad part; photograph pattern; note tool path and speeds | Check spindle runout and drawbar force |
| Spindle load fluctuation 18-26% | Record load graph; note ambient temp; check coolant flow | Inspect tool holder taper; run ballbar test |
| Ra increase of 15% | Measure with profilometer; compare to spec; record date and time | Evaluate if finish is acceptable; if not, proceed to alignment check |
| Runout 0.0006 in vs baseline 0.0003 in | Dial indicator reading; test bar serial number; spindle speed | Schedule alignment check and preload adjustment |
| Bearing temp 105°F vs baseline 95°F | Infrared thermometer reading; warm-up duration; ambient temp | Check preload setup; monitor after adjustment |
| Ballbar deviation 0.0012 in with lobing | Save ballbar plot; note axis and feed rate; compare to machine spec | Inspect axis ways and servo tuning; re-test after maintenance |
This table became the core of our handoff inspection report. Each signal was tied to a specific piece of evidence and a clear next action. The operator could follow it without needing to interpret vague notes. I also added a column for the person responsible, but that's shop-specific. The key was that every signal had a measurable check and a decision point.
Using this ladder, we avoided the common trap of guessing at the root cause. Instead of swapping tools or tweaking offsets blindly, we let the evidence guide us. The runout inspection was the final confirmation that the spindle needed attention. After the maintenance work, we re-ran the same checks and saw all signals return to baseline.
Lessons for the Next Setup Drift
Building a repeatable handoff process
One thing I learned from this experience is that the handoff inspection should start the moment the operator notices something unusual. Waiting until the end of the shift or after a batch is complete can allow drift to compound. I now recommend that every operator in our Ohio shop keep a simple log of any anomalies they see during the run, even if they seem minor. That log becomes the starting point for the handoff inspection.
Another lesson is to involve the maintenance team early. In the past, we would try to troubleshoot everything ourselves and only call maintenance as a last resort. But by bringing them in after the initial signal checks, we saved time and avoided unnecessary tool changes. The maintenance tech appreciated having the ballbar plot and temperature readings ready, so he could go straight to the alignment check check without repeating our tests.
Finally, I made sure to update our standard operating procedure to include the evidence ladder table. Now, every handoff inspection follows the same structure: observe signals, collect evidence, decide on next actions. This consistency helps new operators learn the process and ensures that no step is skipped. The next time we see a spiral pattern or load fluctuation, we'll know exactly what to do.
This article is based on my personal experience as a machinist in Ohio shops and is intended for informational purposes only. Always follow your machine tool manufacturer's guidelines and applicable ANSI standards when performing maintenance and inspections. — Evan Mercer, Machining Process Contributor
